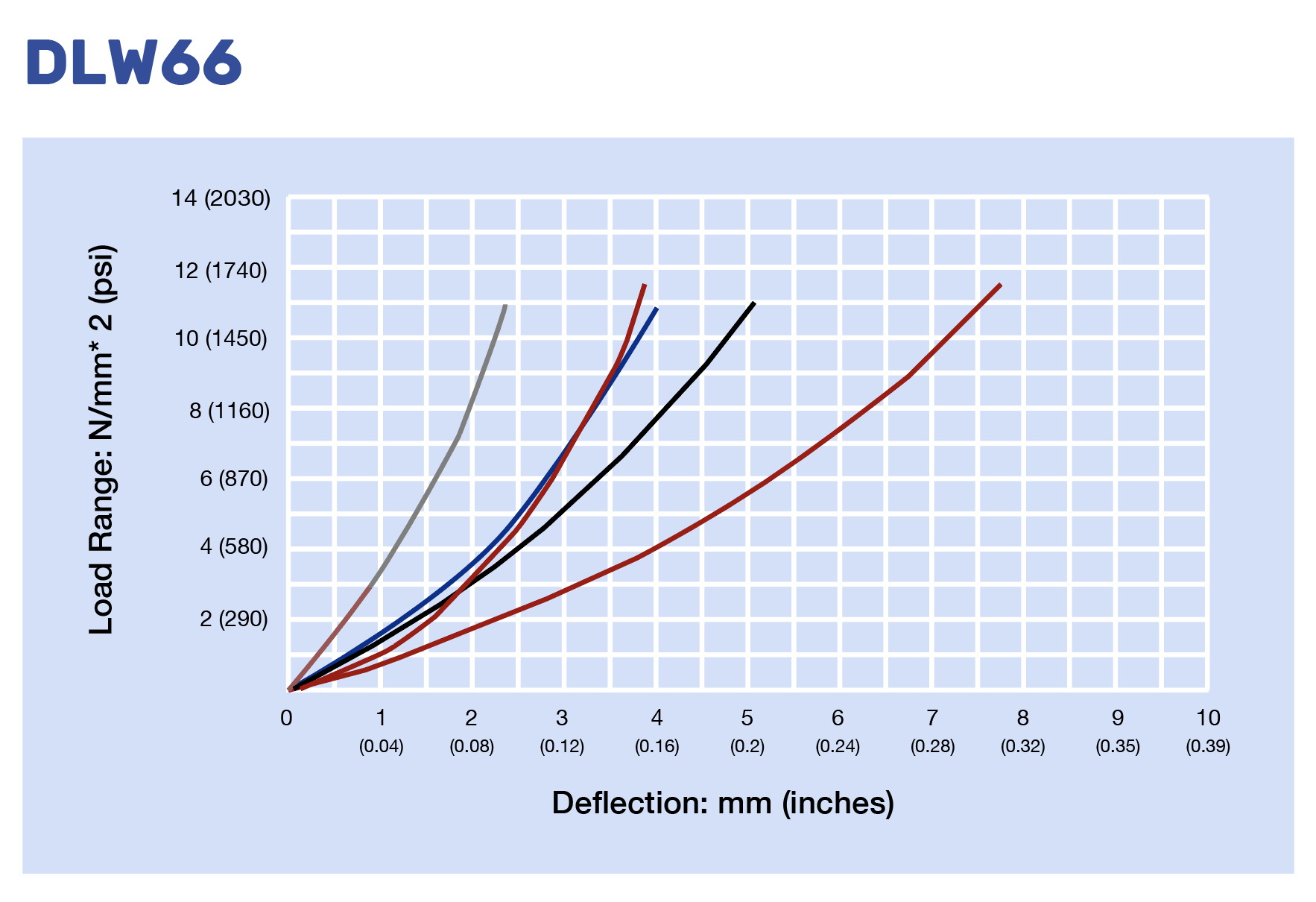

DLW66 and DLW66XP ROF Bearing Pads
Armaload DLW66 Load Bearing Pads are used extensively in standard construction applications, precast and prestressed concrete bridges, buildings and structural steel bearing applications, as well as machinery, equipment foundation, railway tie pads and shock and vibration isolation.

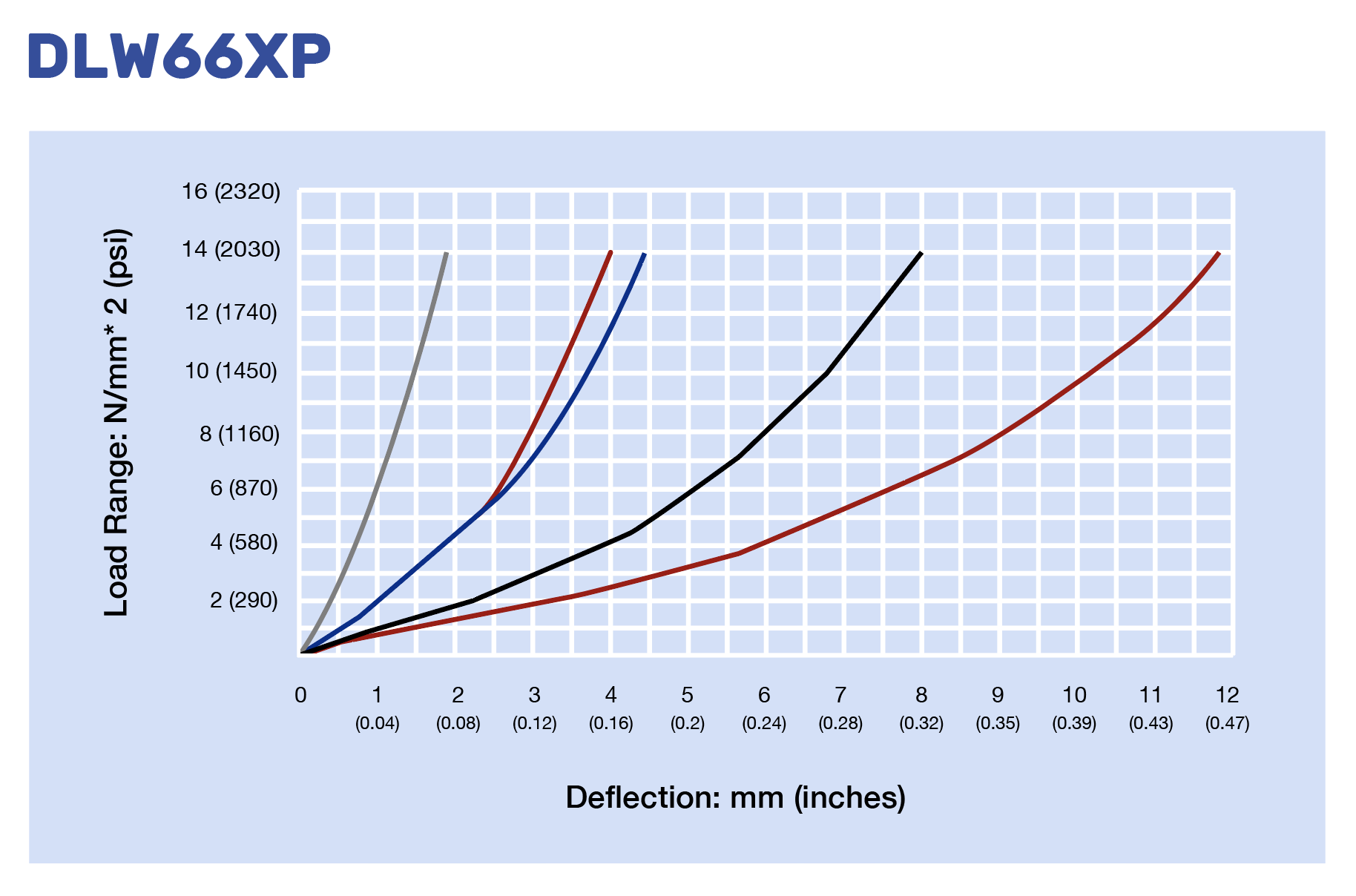

Premium Grade Armaload DLW66XP
Our premium grade Armaload DLW66XP Elastomeric Load Bearing Pads are constructed in a unique cross ply manufacturing process, giving uniform physical properties in all directions. These premium grade load bearing pads are designed for more demanding structural applications with greater load requirements.
High Quality Manufacturing Process

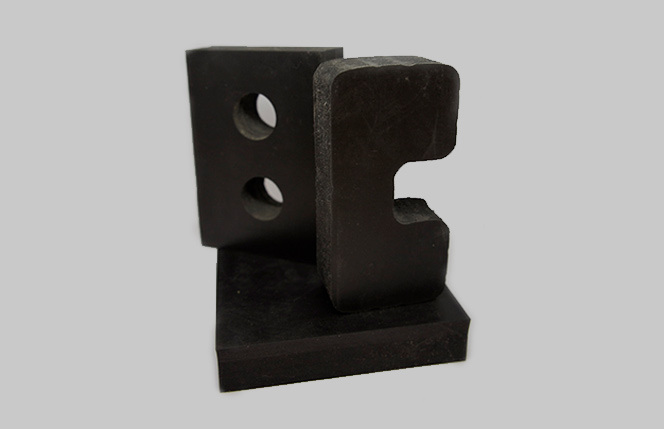

All Armaload DLW66 Load Bearing Pads are manufactured in continuous cure presses, not batch presses, which allow us to economically produce custom shapes and sizes and meet the demands of large scale construction projects. Load bearing pads can be supplied to specified dimensions ready for installation, including cut outs and holes, or in sheet form for on site fitting.
Load Bearing Pads
See our comprehensive range of foundation isolation materials here.
Armadillo structural slide bearings are custom designed to accommodate expansion, contraction and other reciprocating motions of any structure that moves as a result of thermal, seismic or differential forces.
Dance Floor Pads
Sports floors, gymnasiums and dance studios require a firm yet resilient feel. This is achieved by supporting the floor on resilient pads to give the correct balance for shock absorbing coupled with sufficient rebound to give the floor a “live” feel. Armadillo DFP15 is the ideal material to achieve this.
Pipe Support Bearings
A new range of bronze bearing plates supplied by Armadillo. These are used for numerous applications within pipeline support systems such as Oil & Gas to Industrial systems.
Armaload - DLW66
Armaload DLW66 random oriented fiber (ROF) bearing pads are made from masticated elastomer which is fully cured and fiber reinforced. The random fiber reinforcement provides higher tensile and compressive strength, stiffness, tear resistance and durability than unreinforced rubber pads. ROF bearing pads will support loads up to 2,000 psi before breakdown.
Armaload - Mil-C-882
Armaload is a preformed fabric bearing pad which meets MIL-C-882, AASHTO 126.96.36.199, AASHTO 188.8.131.52 and AASHTO 18.10.1 specifications. Manufactured from compressed layers of closely woven lightweight fabric, bound withmaterial will support loads up to 12,000 psi before breakdown.
Offered in various sheet sizes and thicknesses Armacork is the ideal entry level material to offer a cost effective and fast vibration control solution for many industrial applications.
The introduction of Armacork between the machine base and the supporting foundation effectively prevents the transmission of structure borne disturbance to the adjacent areas.
Neoprene / Rubber Pads
Some applications do not warrant the expense of a custom made Vibration Control pad but do require some element of resilience in the installation.
In such cases, for slight surface irregularities, Industrial Grade pads can be provided by Armadillo NV as an alternative low cost solution.
Vibstop isolation material is a specifically designed vibration absorbing medium. Produced as a cost-effective solution to isolating foundations whether it be existing machinery or installing new equipment.
Armadillo Armacush is an ideal product which not only gives excellent long term performance but is also specifically designed for ease of installation to avoid costly delays in the construction process. Designed for full area coverage the problem of temporary shuttering or designing the mass to be able to span bearing centres is avoided.
PTFE Slide Bearings
When movements need to be accommodated in structural connections, a sliding element will need to be employed in the design. Armadillo can design manufacture and supply a cost effective solution for applications such as vessel thermal, petrochemical applications, pipelines or building movement joints. A PTFE surface is applied to Armaload fabric reinforced or ROF bearing pads where higher loads and rotation may occur.
